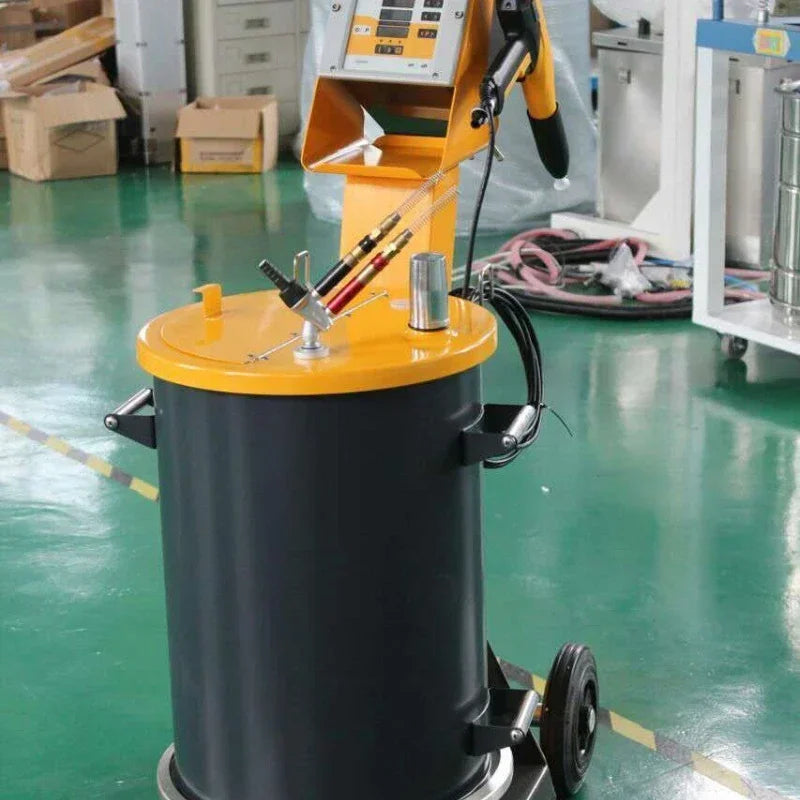

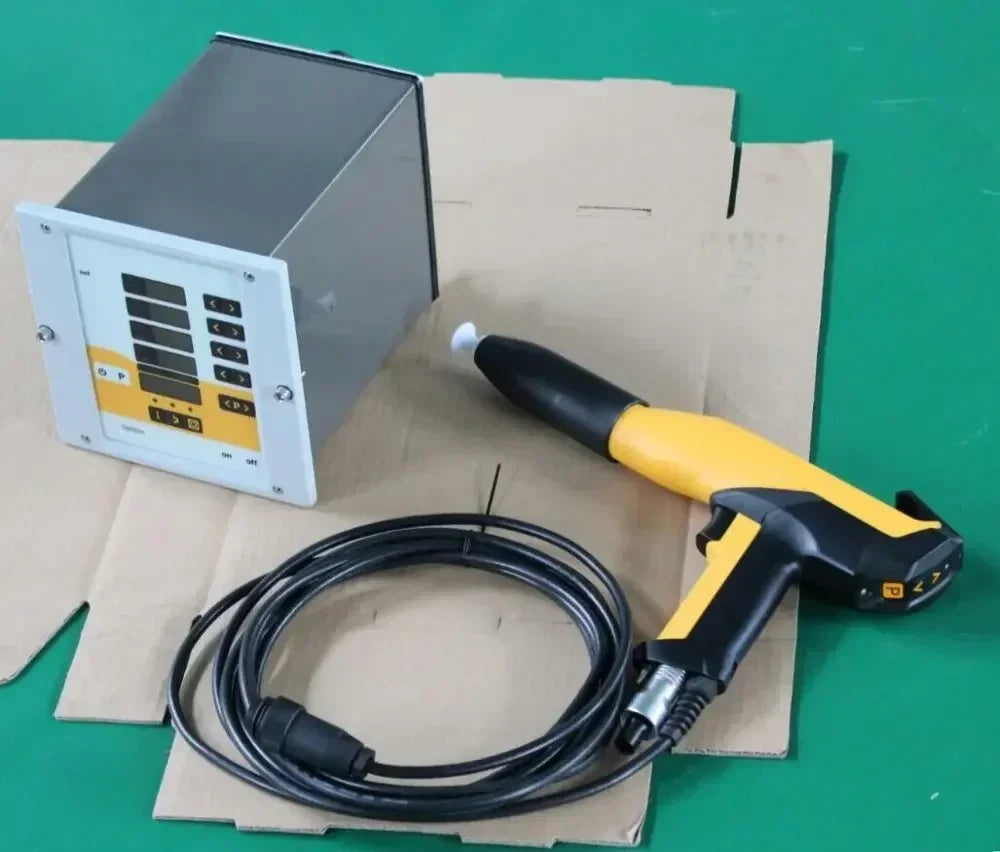

Whole set of Electrostatic TCCT OptiFlex 2F Manual Powder Coating Machine
SPECIFICATIONS
|
|||
Nominal input voltage |
110V240VAC |
||
Frequency |
50-60Hz |
||
Connected load (without vibrator) |
40 VA |
||
Nominal output voltage (to the gun) |
eff.10 V |
||
Nominal output current (to the gun) |
max. 1.2 A |
||
Connection for rinsing function (valve) |
24 VDC max. 3 W |
||
Temperature range |
0°C - +40°(+32°F - +104°F) |
||
Max. surface temperature |
120 °C (+248 °F) |
||
Approvals |
II 3 D IP54 120 °C |
Pneumatical Data |
|||
MAX.input pressure |
10bar |
||
MIN.input pressure |
6bar |
||
Input pressure (Dynamic based on pressure regulator setting) |
5.5 bar / 80 psi |
||
Max.water vapor content of the compressed air |
1.3g/Nm³ |
||
Max.oil vapor content of the compressed air |
0.1mg/Nm³ |
||
Max.compressed air consumption |
8Nm³/h |
Dimensions |
|||
Width |
460mm |
||
Depth |
832mm |
||
Height |
1105mm |
||
Weight |
42kg |
Brand Name: NoEnName_Null
Certification: None
Connected load (without vibrator): 40 VA
Connection for rinsing function (valve): 24 VDC max. 3 W
DIY Supplies: ELECTRICAL,Paint & Decorating
Frequency: 50-60Hz
Hign-concerned Chemical: None
Model Number: OptiFlex 2F
Nominal input voltage: 110V-240VAC
Nominal output current (to the gun): max. 1.2 A
Nominal output voltage (to the gun): eff.10 V
Origin: Mainland China
